OE NO. S14-102/129940-77010/Yanmar 4TNV94L

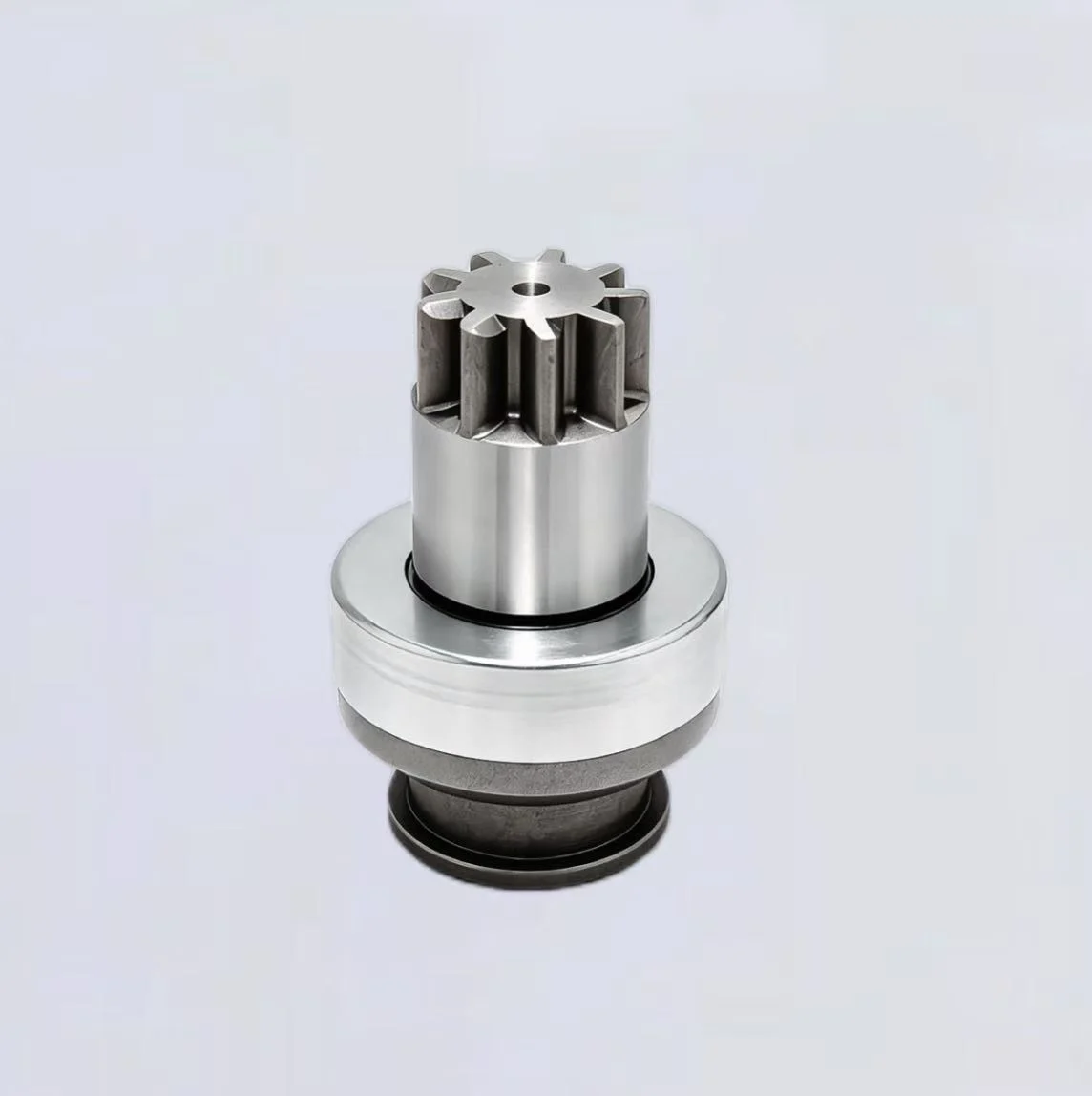

Starter Drives
This compact‑structure starter drive is a vital part for starter motors, it effectively alleviates common troubles including gear chipping and clutch stuck. OEM & bulk supply available.Please check all dimensions before ordering
- Internal Model No: T138E
- Material: 20CrMnTi
- Feature: Resist gear tooth chipping and abrasion, reduce failure rate;Precise outer dimension, easy for direct replacement installation;
- Application: Automotive starter motors
This starter drive transfers power through internal roller one‑way‑clutch mechanism. When starting the vehicle, the driving gear pushes outward to mesh with engine flywheel and cranks the engine.
NO OF TEEEH:9
NO OF SPLIN:5
ROTATION:CW
PINION DIA:34.65
BUSHING DIA:12
DRIVE DIA:59.5
LENGTH:88.5
Our common quality system applies to every product family. First-piece, in-process and final inspection records are managed through the production workflow.
- IATF 16949:2016Automotive quality management system
- MES traceabilityProduction and inspection records
- 30+ inspection machinesGear, dimensional and profile inspection
