OE NO. J08E/28100-E0080
Starter Drives

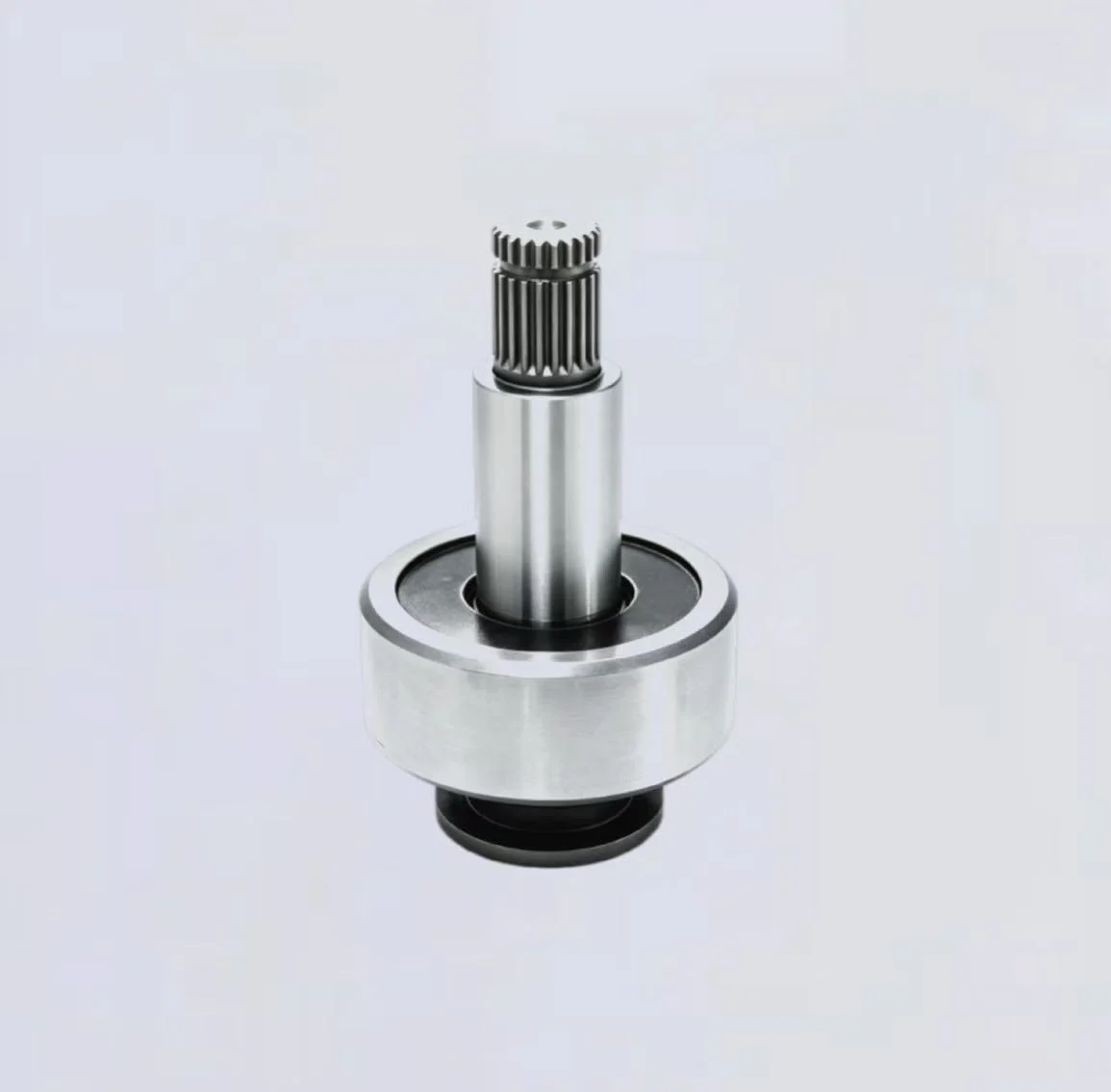

This starter drive assembly is a precision-engineered component designed for automotive starter motors. It features a splined output shaft, cylindrical clutch body, and robust disc base,
- Internal Model No: T135
- Material: 20CrMnTi
- Feature: Cylindrical clutch body for stable torque transfer;Robust disc base for added rigidity
- Application: Automotive starter motors
Constructed from high-strength alloy steel, this starter drive assembly is precision machined for consistent performance. The splined top allows positive engagement, while the cylindrical clutch section provides stable power transfer from the starter motor to the engine flywheel.
NO OF TEEEH:11
NO OF SPLIN:5
ROTATION:CW
PINION DIA:40.7
BUSHING DIA:12
DRIVE DIA:66
LENGTH:108
Our common quality system applies to every product family. First-piece, in-process and final inspection records are managed through the production workflow.
- IATF 16949:2016Automotive quality management system
- MES traceabilityProduction and inspection records
- 30+ inspection machinesGear, dimensional and profile inspection
