OE NO. M191*67771/M357*67871/ME701651/ME701648/M8T50071/231371

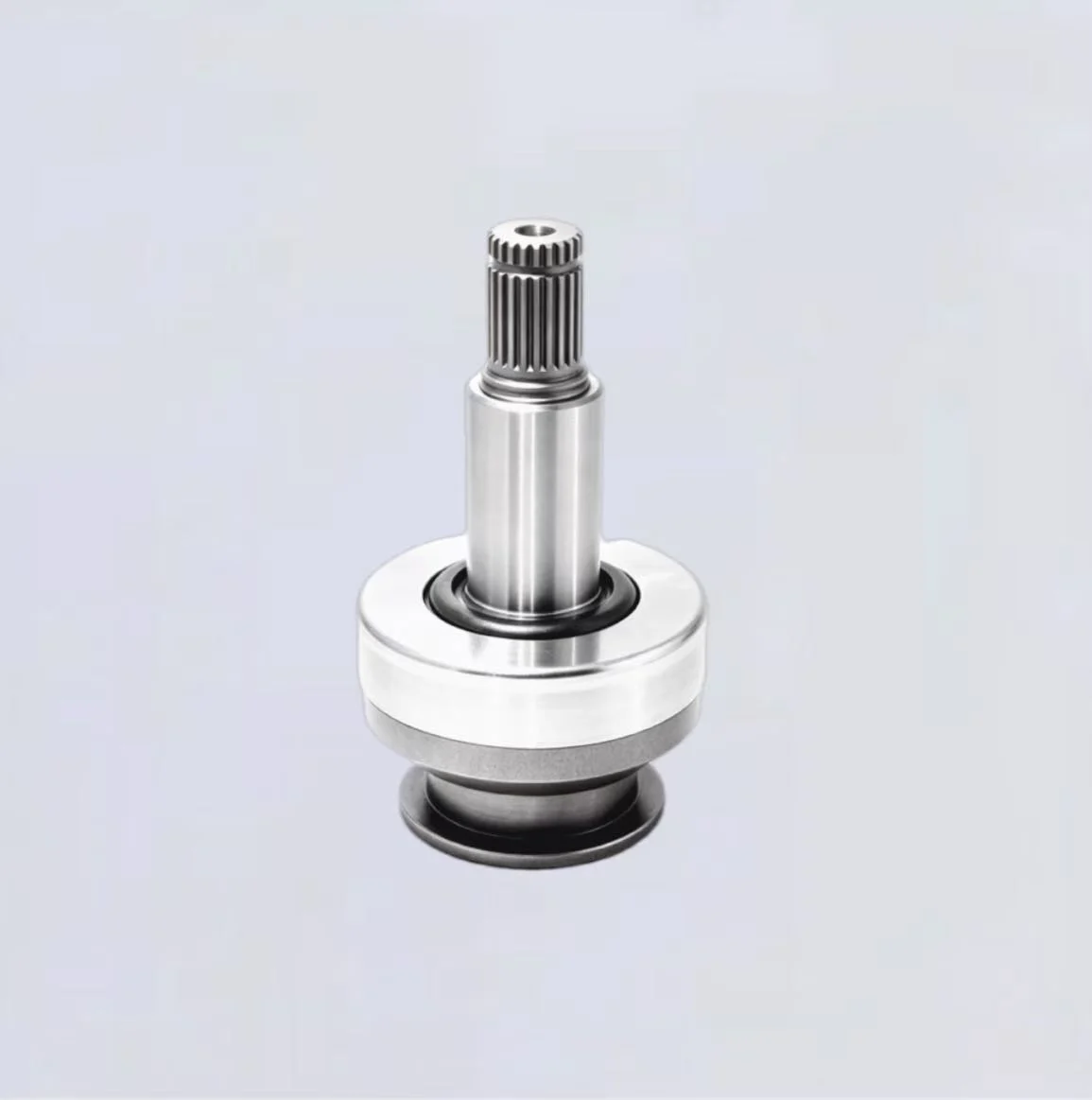

Starter Drives
This starter drive is a precision assembled one-way clutch unit for vehicle starter motors. It adopts integrated shaft and clutch structure to transfer torque smoothly during engine cranking.
- Internal Model No: T138B
- Material: 20CrMnTi
- Feature: Integrated shaft machining reduces assembly clearance and improves overall rigidity; Roller one-way clutch structure with sensitive and reliable clutch response
- Application: Automotive starter motors
Strict finished machining ensures stable performance under frequent start-stop cycles.
NO OF TEEEH:20
NO OF SPLIN:5
ROTATION:CW
PINION DIA:14.95
BUSHING DIA:12
DRIVE DIA:61.4
LENGTH:110
Our common quality system applies to every product family. First-piece, in-process and final inspection records are managed through the production workflow.
- IATF 16949:2016Automotive quality management system
- MES traceabilityProduction and inspection records
- 30+ inspection machinesGear, dimensional and profile inspection
