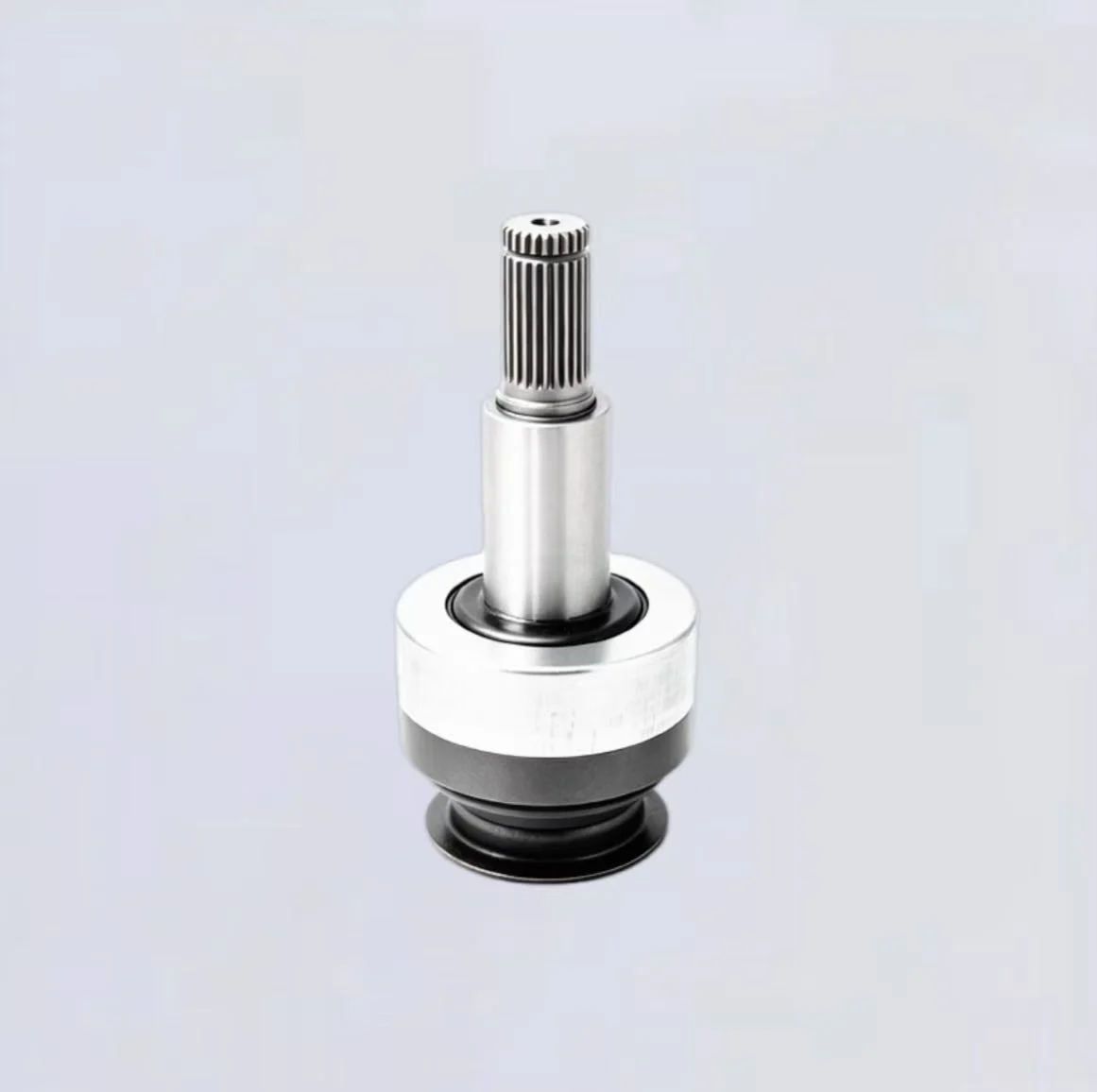

Starter Drives
The starter drive assembly is the critical power transfer component that links the starter motor to engine flywheel. It engages to transmit cranking torque only during engine startup, and automatically releases connection after ignition, protecting starter components from damage caused by engine high-speed rotation.
- Internal Model No: T140B
- Material: 20CrMnTi
- Feature: Fine-machined spline surface, achieving smooth meshing and stable torque delivery;
- Application: RENAULT V.1. KERAX MAGNUM AE/MANAGER/PREMIUN
This is built to meet OEM performance benchmarks. With integrated splined shaft and one-way clutch structure, it undergoes precision machining and heat treatment to maintain stable performance under repeated cold start cycles. Designed for aftermarket repair and replacement, it delivers consistent and reliable starting performance for various automotive starter assemblies.
NO OF TEEEH:26
NO OF SPLIN:6
ROTATION:CW
PINION DIA:19
BUSHING DIA:14
DRIVE DIA:66
LENGTH:140.5
Our common quality system applies to every product family. First-piece, in-process and final inspection records are managed through the production workflow.
- IATF 16949:2016Automotive quality management system
- MES traceabilityProduction and inspection records
- 30+ inspection machinesGear, dimensional and profile inspection
